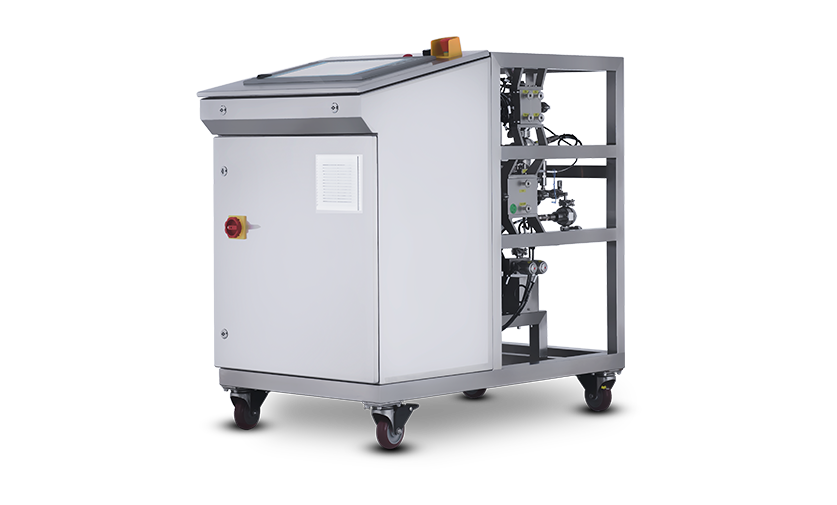

Pilot-Scale Chrom System DN8

  • Mobile chassis, rack, and skid design, flexible and convenient.

  • Using a high-precision constant-flow pump with small pulsation and reliable performance, it can achieve long-term uninterrupted operation.

  • Pneumatic and electric valve groups are available to meet different applications and pressure requirements.

  • 200-400nm wavelength multi-channel scanning, supporting simultaneous online monitoring of multiple wavelengths.

  • Fully automatic software control, humanized graphical interface, simple and convenient operation, powerful functions.

  • Customized flow cell can adjust the optical path according to the sample concentration to optimize the UV detection signal.

Specifications
Recommended Flow Rate Range0.6-48 L/HPiping Material      316L Stainless Steel
Footprint650*1350mmPump Head Material      316L S.S.
Entry Height1150mmPressure0-6 bar
Weight300kgpH Detection Range0-14
Piping Size1/4 inchConductivity Detection Range0.01-300ms/cm
Air Source8mm, 5-7bar, Oil-free and particle-freeFlow Rate Accuracy1.00%
Power Supply200V, Single phase three wireProtection ClassIP54
