Low Pressure Process-scale Automated Chrom System

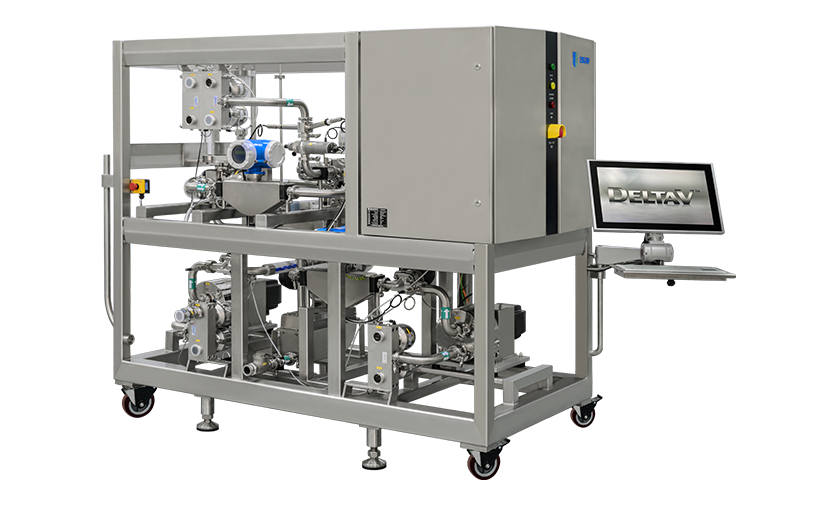

APPS Process chromatography system is designed for large-scale production process of biological products. The system design of APPS Process complies with ASME BPE and cGMP standards. The system is integrated, modular, and standardized with various configurations that meet different requirements from our users. The system can be run automatically to achieve typical process steps of chromatography such as equilibrium, sample injection, wash, elution, collection, cleaning, regeneration, etc. System documentation is available to fully support qualification and validation for cGMP regulated customers.
Various Specifications
Hygienic Design
Reliable and Stable
Multiple Control Platform
cGMP Compliant
Customized Design
Includes a series of models that cover a wide range of flow rates and specifications to meet the process requirements of customers.
Core components are supplied by internationally renowned manufacturers. They are identical or comparable to the best on the market.
Hygienic design complying with ASME BPE and cGMP requirements.
Multiple control platform available: Emerson DeltaV, Siemens WinCC, CBS software developed based on Labwindows, fully complying with FDA 21 CFR Part 11 requirements.
User-friendly interface: simple, stable, and easy to operate.
Full documentation support for qualification and validation for cGMP regulated customers.
Product Number （Item Number） | Recommended Flow Rate Range （L/H） | Max Flow Rate （L/H） | L*W*H （mm） | Piping Size （inch） | Power Supply | Weigh t (kg） |
| APPS Process DN8 | 3-60 | 72 | 1250*650*1770 | 1/4 | 220V, single-phase | 300 |
| APPS Process DN10 | 6-150 | 180 | 1450*650*1770 | 3/8 | 220V, single-phase | 300 |
| APPS Process DN15 | 16-600 | 800 | 1460*650*1770 | 1/2 | 220V, single-phase | 350 |
| APPS Process DN20 | 24-1000 | 1200 | 1460*650*1770 | 3/4 | 220V, single-phase | 400 |
| APPS Process DN25 | 15-2000 | 3300 | 1700*1030*1770 | 1 | 380V, Three-phase five-wire | 500 |
| APPS Process DN40 | 500-5000 | 10000 | 3150*1400*2150 | 1.5 | 380V, Three-phase five-wire | 600 |
| APPS Process DN50 | 800-16000 | 20000 | 3150*1400*2150 | 2 | 380V, Three-phase five-wire | 650 |
All APPS Process are applicable to below:
* Protection level: IP55
* Piping /Pump head material: 316L stainless steel
* Pressure rating: 6 bar
* Flow rate accuracy: 1.00％
* Conductivity detection range: 0.01-300ms/cm
* Pneumatic supply: 8mm, 5-7 bar
* PH detection range: 0-14
* UV detection: 200-400nm
* Bubble trap: Compact Design
