Benchtop Pliot Chrom System

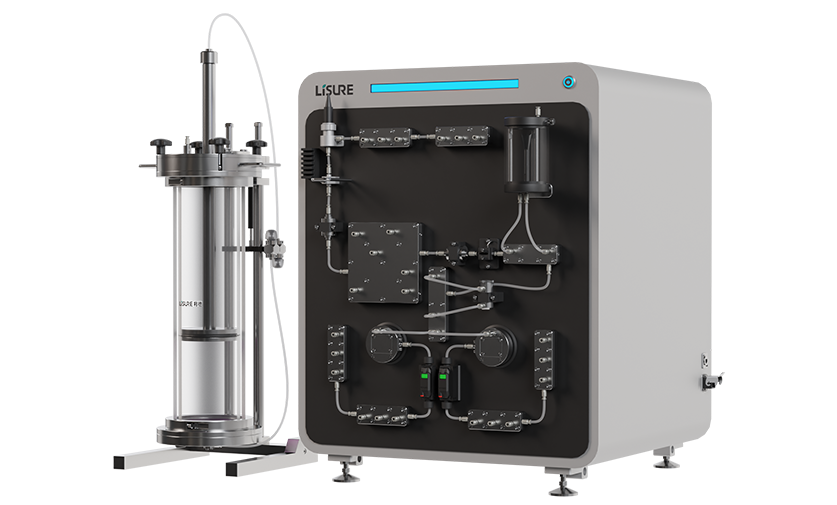

B Pilot 750 chromatography system is suitable for product development, pilot-scale research and small-scale GMP-grade production purification. The system is powerful and can easily meet project needs, helping customers stay ahead in process development and technology transfer, and prepare for future GMP work. It is an ideal tool for rapid proof of concept (PoC). The system uses a sanitary diaphragm pump + flow meter, with a new BSC series desktop intelligent compression column and system intelligent column packing function. Compact panel design, patented connectors for easy connection, optional DCS & Batch automation platform software.
Multi-wavelength UV Detector
Compact Diaphragm Block Valve
Patented Hard Pipe Joint
High Performance Diaphragm Pump
CBS Control Software
Constant Ccurrent Control
Standard multi-wavelength variable wavelength UV detector based on deuterium lamp, optional long-life UV single-wavelength and dual-wavelength detector based on LED light source, life> 8000h.
Patented hard pipe quick connector for easy connection.
Dual High-precision ultrasonic flow meters, PID to achieve constant flow control.
The electromagnetically driven compact diaphragm block valve can realize multiple functions: single/double column optional, double column in series.
High-performance sanitary diaphragm pump, in line with GMP requirements.
The CBS control software developed based on the Labwindows/CVI platform has powerful functions, simple operation, stable operation, and complies with FDA CFR Part 11 requirements.
| Footprint | 780*700*820mm | Weight | 90Kg | Piping Size | 3/16"OD，1/8"ID |
| Working Pressure | 0~6 bar | Working Temperature | 2~40℃ | Working Humidity | 5%~95% |
| Power Supply | 100-220V, 50-60Hz | Protection Class | IP33 | System Pump | A/B diaphragm pump |
| Flow Rate Range | 30 ~750 mL/min | Flow Accuracy | ±2% | UV Detector | Multi-wavelength detection |
| pH Detector | 0~14, within range 2-12, accuracy ±0.2 | Pressure Detector | 0-6 bar, accuracy±0.2bar | Column Valve | Single/double optional, double columns in series, intelligent column loading function |
| Inlet | Max. inlet 12 pcs，A1~A6, B1~B6 | Outlet | Max. outlet 6 pcs, P1~P6 | Control System | PLC1500, benchtop PC |
