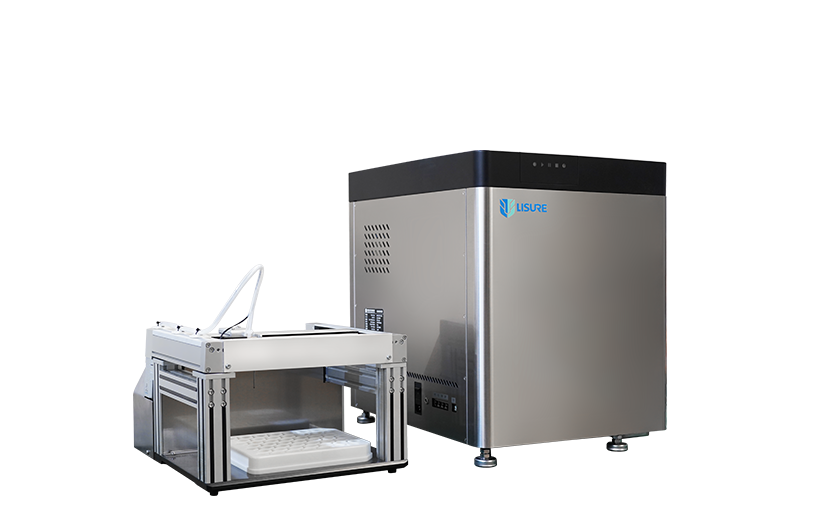

Lab-scale Automated Chrom System
Lab-scale chromatography systems are suitable for the separation and purification of downstream processes of biological products in the R&D and lab-scale, and are mainly used in pharmaceutical fields such as monoclonal antibodies, recombinant proteins, vaccines, chemicals, and peptides.
Integrated Design
Easy to Operate
High Speed & Stable
The integrated design of pumps, valves and detectors is simple and applicable, with multiple configurations suitable for both basic and advanced applications.
The software packing station has a simple interface and is easy to operate. It is equipped with verification functions that meet the requirements of FDA 21 CFR Part ll.
New collector, with high speed and stability.
| Specification | ADV Plus | ADV |
| System Pump/Sample Pump | Double lunger pump (System pump*2/Sample pump*1) | Double lunger pump (System pump*2) |
| Inlet Valve | 2-way gating for each pump of the system pump, 6-way gating for the sample pump (optional) | 2-way gating for each pump of the system pump (optional) |
| Column Valve | Support 5 way column selection +1 way bypass | 1 column single |
| Flow Rate | 0.1-20mL /min I 0.1-100mL/min | |
| Plunger Pump max. Pressure Resistance | 0.1-20mL /min 150bar I 0.1-100mL/min 100bar | |
| Flow Rate Accuracy | ±2% | |
| Gradient | Gradient, linear gradient, gradient and flow rate can be modified on line. | |
| Multi-wavelength Online Scanning | 200~700nm, 2048 CCD Array detector (Simultaneous detection of 6 wavelengths) | |
| Light Source | High quality deuterium lamp (tritium tungsten lamp energy can be adjusted by software). | |
Wavelength Accuracy | ±1nm | |
| Spectrum Absorbance Range | -3~3Au | |
| Conductivity Detection Range | 20μS/cm~200mS/cm | |
| pH Detection Range | 0~14 | |
| Collector | Configured individually | |
| Fraction Collector | PE15R, support 15mL Centrifugal tube, 7*7 in total 49 pcs (other sizes are optional). | |
| Collection Mode | Manual collection, full collection, interval collection, peak collection | |
| Auto-injection Valve | Automatic injection and continuous injection | |
| Solvent Tray | Multiple solvent bottle can be placed | |
| Power Supply | 220VAC/110VAC | |
| Operation Temp. | 4-40°C | |
| Packing Station Software | Graphical interface, using 64 bit PC packing station (control software system frame) | |
| Footprint | 1500mm*800mm*900mm (L/W/H) | |
