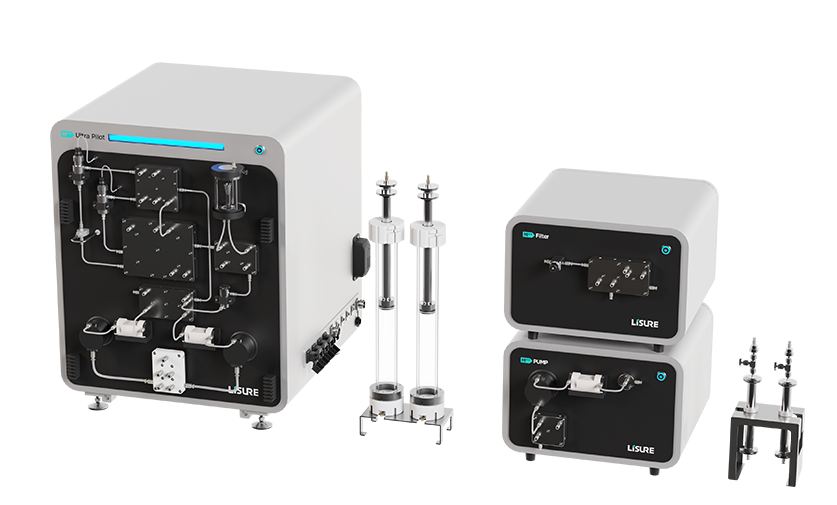

M++ UltraPilot
M++ UltraPilot Platform is an ultimate process intensification and tech transfer tool geared towards cGMP production. M++ features single or multiple multi-functional flow handling units on same industrial DCS control network. Each unit on the platform is ready for running Chromatography, Inline dilution (ID), TFF filtration, NFF filtration, SSTFF/SPTFF as well as process intensification (PI) such as multi-column continuous chromatography and connected batches of multiple chromatography and filtration steps without surge tanks. PI strategy can easily be set up and run on M++. Fast Proof of Concept (POC) and Tech Transfer can be achieved at benchtop scale. M++ UltraPilot TT Platform interfaces with enterprise recipe management (ERM/MES) and process knowledge management (PKM) with its DCS control and common data framework effectively supporting process scaleup, tech transfer, and CMC submission.
cGMP
Modular
Multi-Functions
DCS/S88
L3 Interfaces
Modular design: supports commercial applications. Easy to integrate and scale up, greatly improving production efficiency.
Optimize production: Intensification Strategies Readily Available.
Proof of Concept: Proof of Concept (POC) tool for DSP PD/PI at exit of R&D.
Hygienic/Self-Cleanable Design: Hygienic/Self-Cleanable/ASME 3D Design for All Flow Paths.
cGMP Compliance: cGMP Compliant DSP System/Perfect for CGT Production.
Scale up from R&D to Process: From M++ Blocks and DC S to S88 formulations, the whole process can be scaled up.
CMC Data Support: Support From Pilot Scale (Historian/Reporting/Analytics).
Digital Transformation: Digitization/Common Data Frame/L3 Interfaces.
Multi-Column Continuous Chromatography (4C), Direct Loading of unclarified/unconditioned Feed.
With TFF w/o Tank/Load Cell/ Stirrer/Spray Ball, 6 bar and 750 ml/min.
